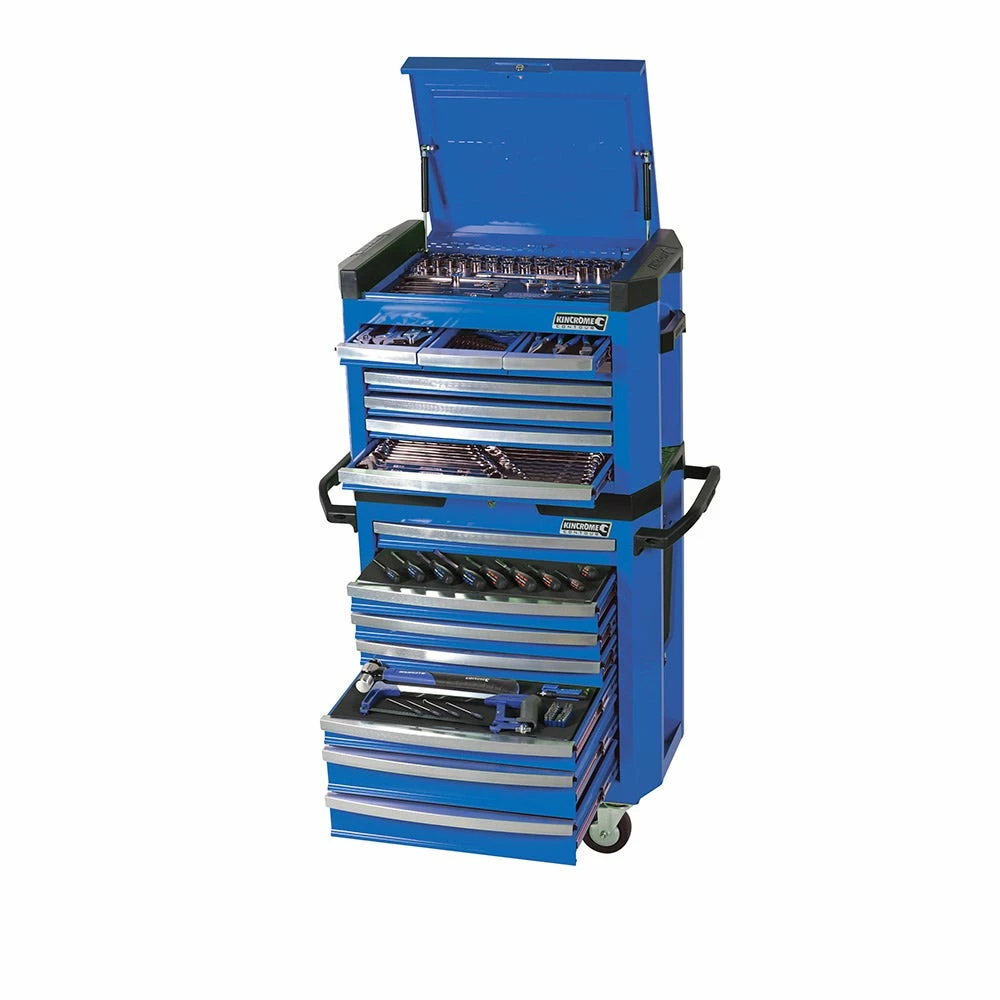

KINCROME Contour Tool Workshop Kit 208 Piece W. Trolley – Blue K1510

The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26” standard, 28” & 29” extra deep, 42” extra wide and 60” super wide. CONTOUR® is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.

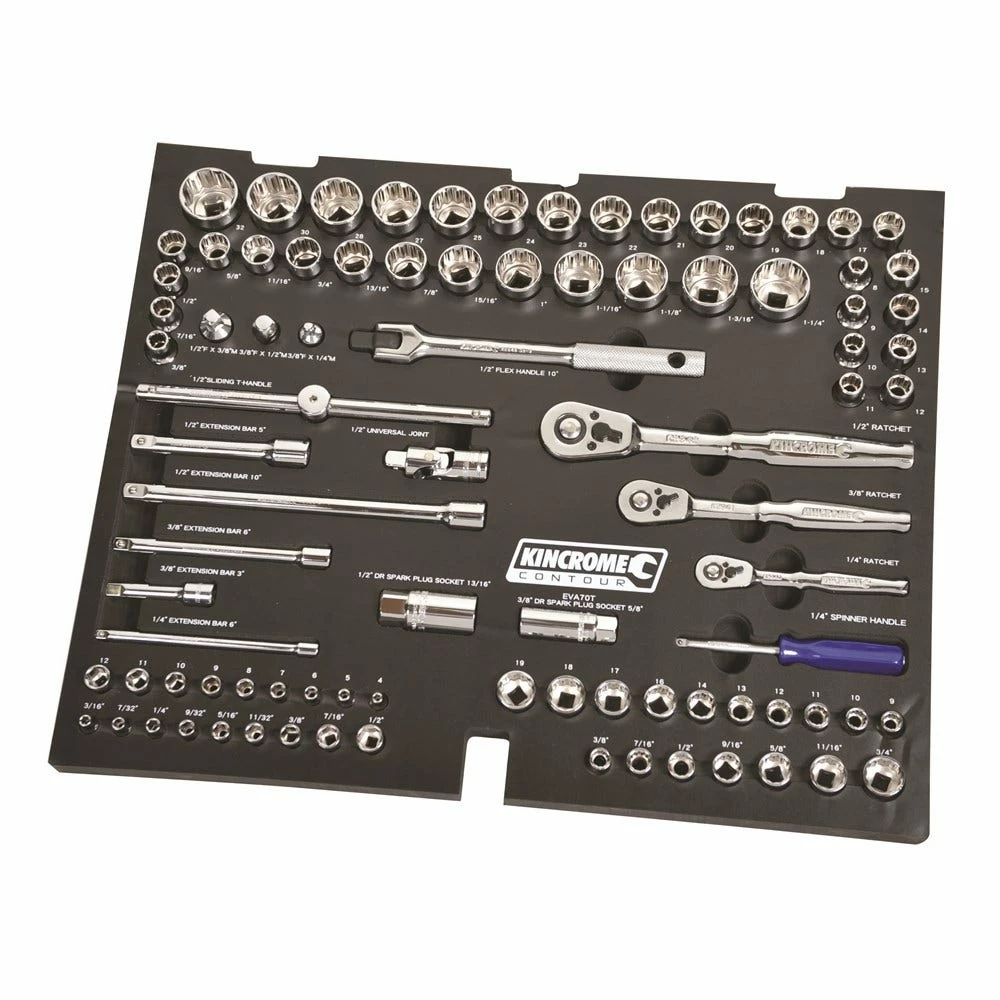

Top Tray – EVA70T – 89 Piece Socket & Accessories EVA Tray – 1/4″, 3/8″ & 1/2″ Drive

Metric Sizes:

• 9 Sockets 1/4″ Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12mm
• 10 Sockets 3/8″ Square Drive: 9, 10, 11, 12, 13, 14, 16, 17, 18, 19mm
• 19 Sockets 1/2″ Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 30, 32mm

Imperial Sizes:

• 9 Sockets 1/4″ Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2″
• 7 Sockets 3/8″ Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4″
• 15 Sockets 1/2″ Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1″, 1.1/16, 1.1/8, 1.3/16, 1.1/4″

13 Socket Accessories:

• 1/4″ Square Drive
  • Ratchet Handle Reversible Male
  • Spinner Handle 150mm (6″)
  • 1/4 Male x 3/8″ Female Adaptor
  • Extension 150 mm (6″)
• 3/8″ Square Drive
  • Ratchet Handle Reversible Male
  • Extension 75mm (3″)
  • Extension 150mm (6″)
  • 3/8 Female x 1/2″ Male Adaptor
• 1/2″ Square Drive
  • Ratchet Handle Reversible Male
  • Universal Joint
  • Extension 125mm (5″)
  • Extension 250 mm (10″)
  • Flex Handle 250mm (10″)
  • Sliding T-Handle 250mm (10″)
  • 1/2″ Female x 3/8″ Male Adaptor
• 2 Spark Plug Sockets
  • 16mm (5/8) x 3/8″ Square Drive
  • 21mm (13/16) x 1/2″ Square Drive

EVA Size – 570mm x 460mm x30mm

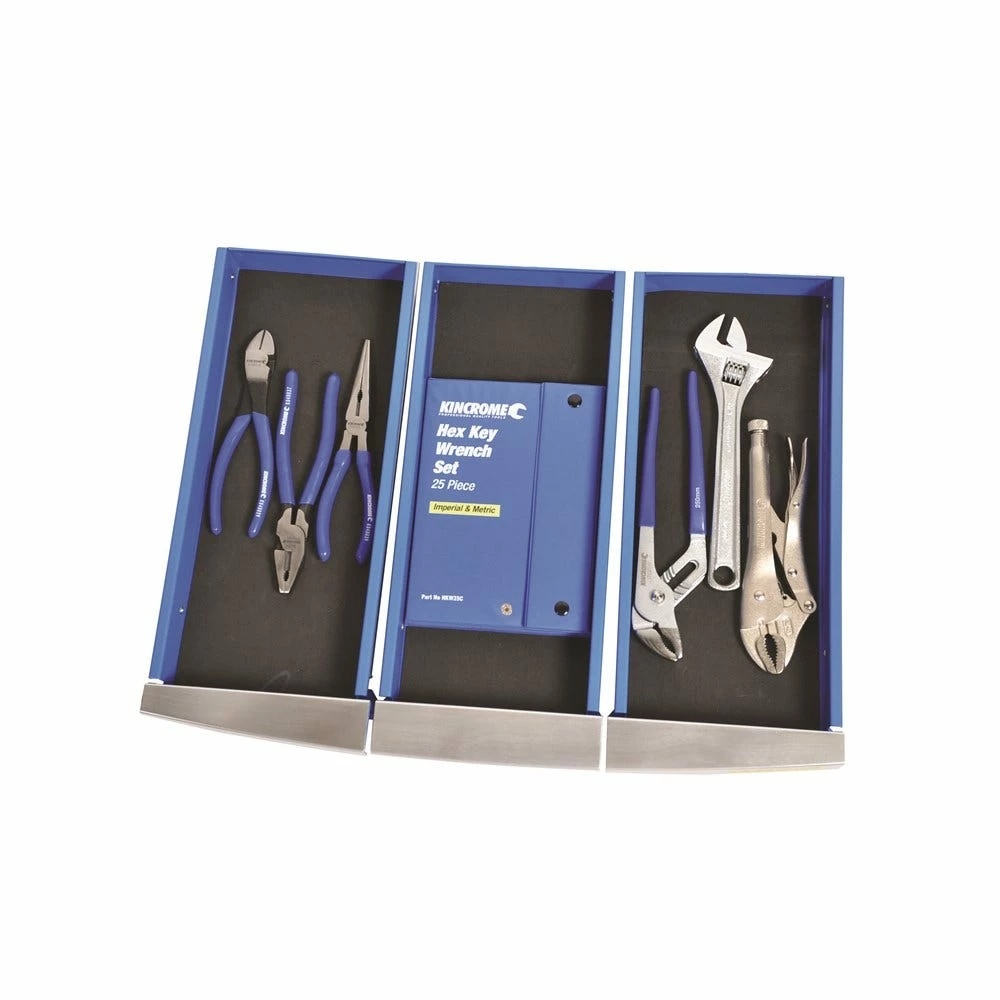

Drawer 1

• Multigrip Pliers 250mm (10″)
• Locking Pliers 250mm (10″)
• Adjustable Wrench 250mm (10″)

Drawer 2

• Hex Key Wrench Set Imperial & Metric 25 Piece:
• Metric Sizes: 1.5, 2.0, 2.5, 3.0, 4.0, 4.5, 5.0, 5.5, 6.0, 7.0, 8.0, 9.0, 10.0mm
• Imperial Sizes: 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8″

Drawer 3

• Combination Pliers 200mm (8″)
• Diagonal Cutting Pliers 200mm (8″)
• Long Nose Pliers 200mm (8″)

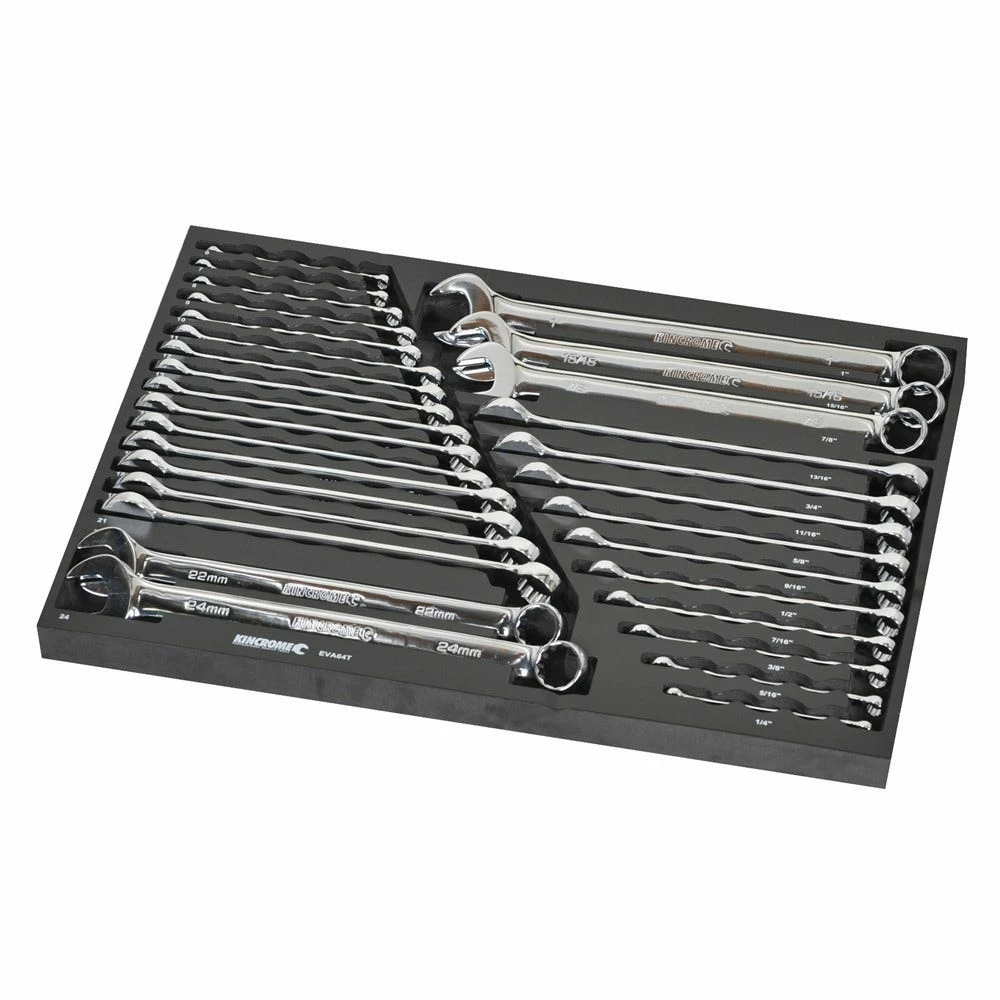

Drawer 4 – EVA64T – 30 Piece CONTOUR® Combination Spanner EVA Tray – Mirror Polish Finish

• 17 Metric Combination Spanners”6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
• 13 Imperial Combination Spanners: 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″, 1″

EVA Size – 540mm x 395mm x30mm

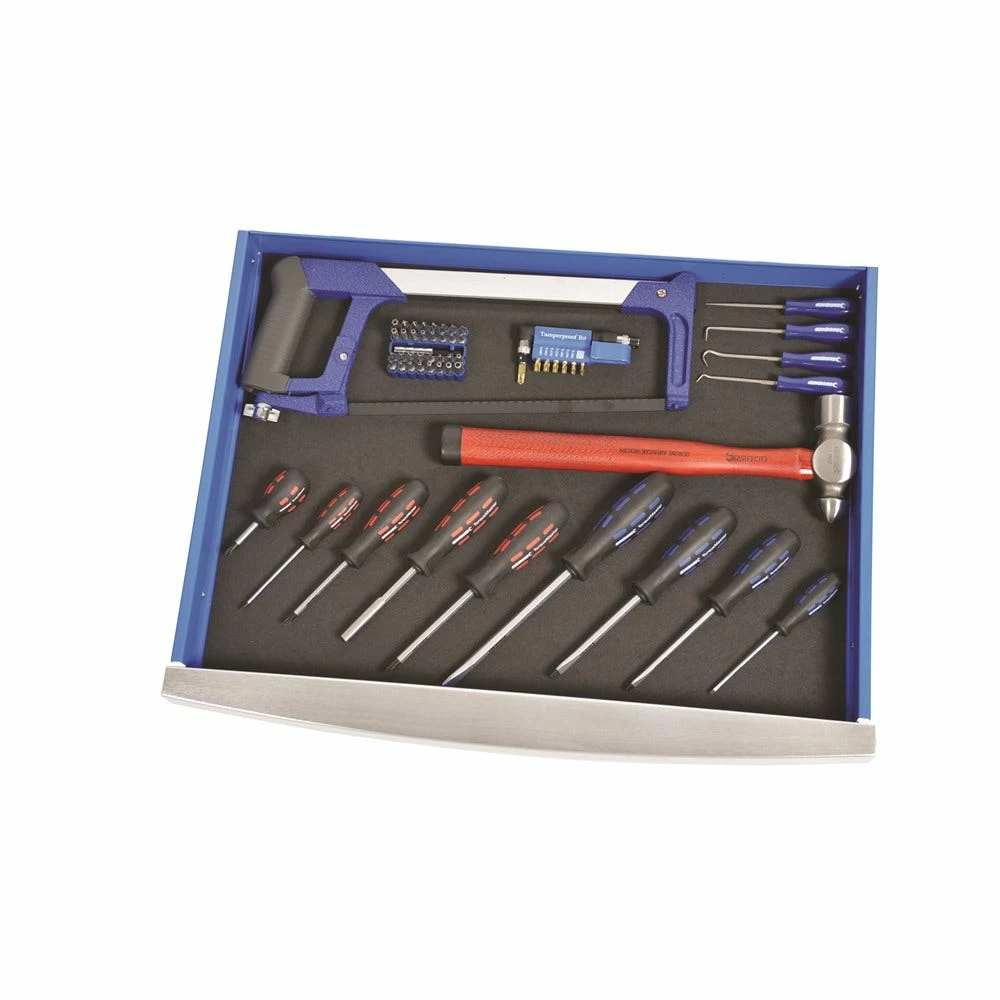

Drawer 5

• Screwdriver Set TORQUEMASTER® 8 Piece
  • 4 Screwdrivers – Blade: 3mm x 75mm, 5mm x 100mm, 6mm x 100mm, 8mm x 150mm
  • 4 Screwdrivers – Phillips: No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.2 x 38mm
• TORQUEMASTER® Bit Driver 1/4″ Hex Drive

Drawer 6

• Security Bit & Holder Set 33 Piece 1/4″ Hex Drive
• Tamperproof TORX® Set 8 Piece 1/4″ Square Drive
  • 7 Pce. TORX® Bits: T10, T15, T20, T25, T27, T30, T40
  • 1 Pce. 1/4″ Hex Drive L-handle
• Mini Hook & Pick Set 4 Piece
  • AWL: 129mm
  • Pin Remover: 115mm
  • L hook: 115mm
  • V hook: 125mm
• Ball Pein Hammer Hickory Shaft 16oz (454gm)
• Heavy Duty Hacksaw 300mm (12″)

Specifications

• Drawers: 15
• Size: 26″
• Tray Type: EVA
• Tool Chest Measurements (8 Drawer CONTOUR® Tool Chest):
  • Measurements: 745 x 475 x 485mm
  • Internal Drawer measurements:
  • Small: 160 x 395 x 40mm
  • Large: 540x 395 x 40mm
  • Top Area: 574 x 460 x 110mm
• Tool Trolley Measurements (7 Drawer CONTOUR® Tool Trolley):
  • Measurements: 745 x 475 x 940mm
  • Internal Drawer measurements:
  • Small: 540 x 395mm x 50mm
  • Large: 540 x 395mm x 95mm
  • Side Tray: 175 x 300mm x 12mm
• Castor Size: 5″ x 2″
• Finish: UV Stabilised Powder Coat
• Material: Heavy Gauge Steel
